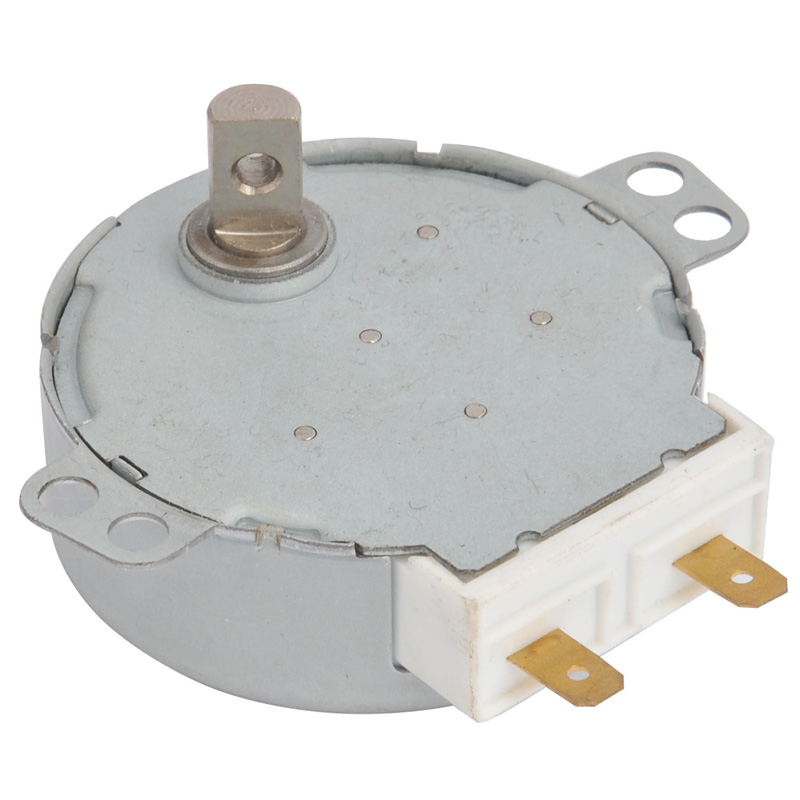

DR50TYJ
Derry Motor
DR50TYJ
| Quantity: | |
|---|---|
AC motors and gear motors include single-phase motors used with a single-phase AC power supply and three-phase motors used with a three-phase AC power supply. A single-phase motor can be operated by simply connecting it to a single-phase power supply via the supplied capacitor. A three-phase motor does not require a capacitor. All you need is to connect the motor directly to a three-phase AC power supply.
Technical specifications:
| Model | DR50TYJ |
| Voltage | 100VAC |
| Frequency | 50/60HZ |
| Power | 4w |
| Current | 48mA |
| Speed | 5rpm/6rpm |
| Rotation Direction | CW |
| Torque | 6kgf.cm |

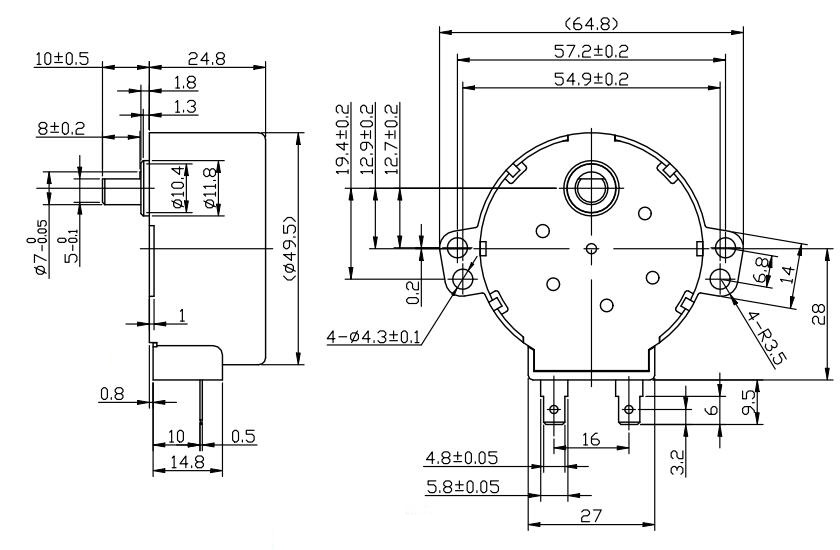

Dimensions:
AC motors and gear motors include single-phase motors used with a single-phase AC power supply and three-phase motors used with a three-phase AC power supply. A single-phase motor can be operated by simply connecting it to a single-phase power supply via the supplied capacitor. A three-phase motor does not require a capacitor. All you need is to connect the motor directly to a three-phase AC power supply.
Technical specifications:
| Model | DR50TYJ |
| Voltage | 100VAC |
| Frequency | 50/60HZ |
| Power | 4w |
| Current | 48mA |
| Speed | 5rpm/6rpm |
| Rotation Direction | CW |
| Torque | 6kgf.cm |
Dimensions:
