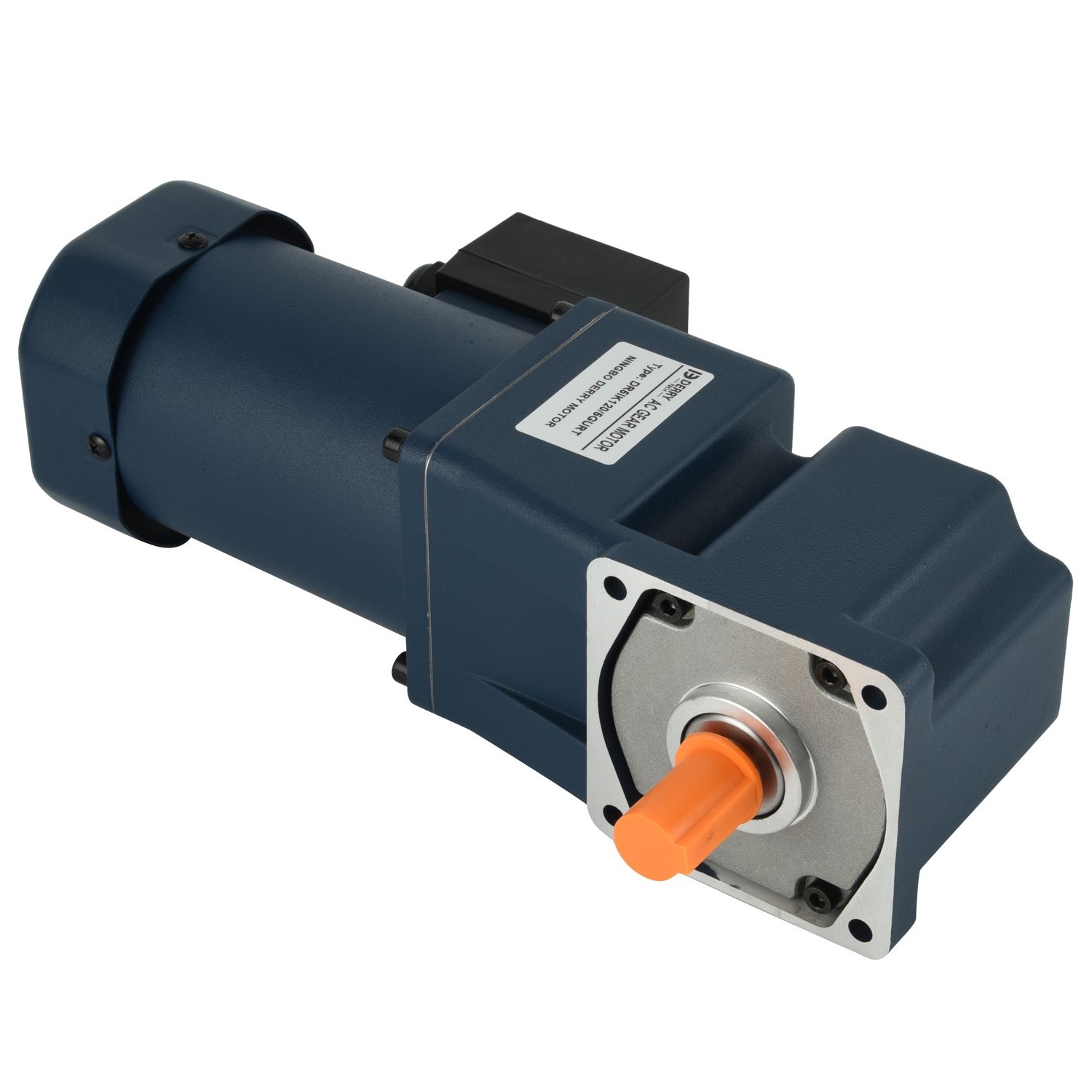

110V 220V single phase three phase Universal AC Right Angle Gear Motors

Voltage:1ph110V,1ph220V,3ph220V,3ph380V
Reduction Ratio:From 3/1 to 180/1
Output shaft:with keyway
Material of Gear:Metal
Connector:optional
Accessories:Brake,Speed controller,capacitor,etc
Application:food conveyor,machinery

  • DR5IK120/5GURT

  • Derry Motor

Availability:
Quantity:
Inquire Add to Basket

AC motors and gear motors include single-phase motors used with a single-phase AC power supply and three-phase motors used with a three-phase AC power supply. A single-phase motor can be operated by simply connecting it to a single-phase power supply via the supplied capacitor. A three-phase motor does not require a capacitor. All you need is to connect the motor directly to a three-phase AC power supply.


Derry offers a wide range of AC Motors & Gear Motors

1.Constant Speed or Speed Control AC Motors available

2. Single-Phase or Three-Phase Types

3.Gear and Electromagnetic Brake Options


Technical specifications

Motor Model

DR5IK120GU

Gearbox Model

5GURT

Rated Voltage

1ph,3ph,110V,220V,380V 50HZ

Bearing

Ball Bearing

Rated Power

120W

Allowable Torque

1.72~20N.m Max

Rated Current

0.87A

Speed at 50HZ

7.5~450rpm

Rated Speed

1350rpm

Gear Ratio

From 3/1 to 180/1

Rated Torque

0.874N.m

Capacitor

6.0/450,μF/VAC

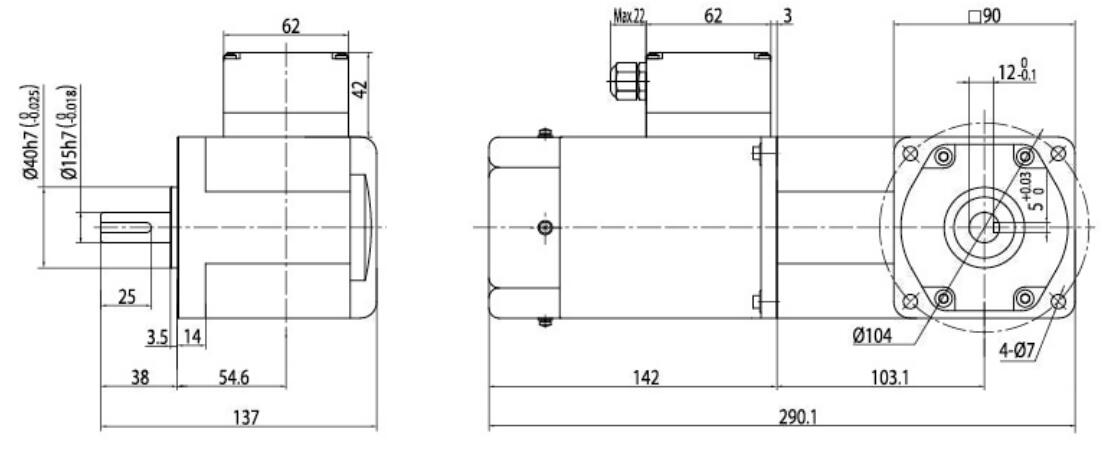

Drawing

QQ截图20230323133509

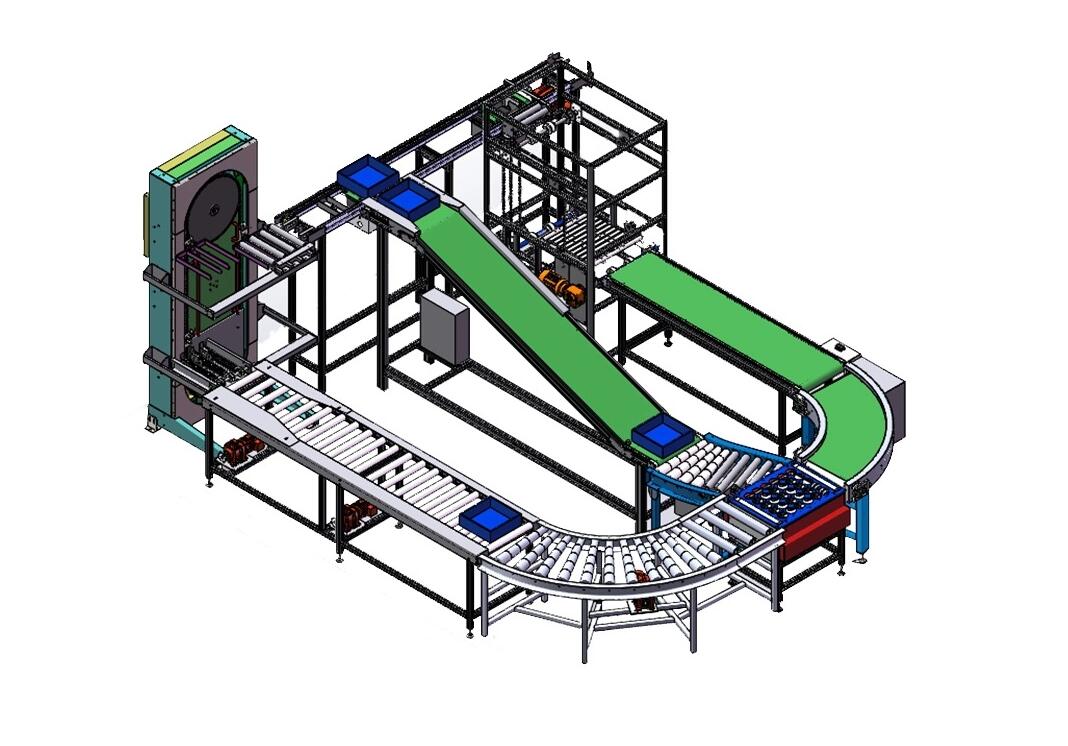

Applications

Applications
