RS550
Derry Motor
RS550
| Quantity: | |
|---|---|
Features:
This RF/RK-520TB micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.
Its reliable output and strong durability make the RF/RK-520TB an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.
Technical specifications:
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| RS-550PHF-6537GY | 12 | 0.9 | 15313 | 6.33 | 13406 | 452.06 | 62.28 | 44.50 | 3629.99 |
| RS-550PH-4559RD | 7.5 | 0.324 | 4911 | 1.83 | 4171 | 240.92 | 10.33 | 10.32 | 1598.89 |
| RS-555SH-22130RX | 24 | 0.08 | 4000 | 0.48 | 3430 | 229.30 | 8.08 | 2.89 | 1609.12 |
| RS-555SHJ2-3545L | 12 | 0.22 | 6500 | 1.66 | 5739 | 245.82 | 14.47 | 12.52 | 2099.65 |

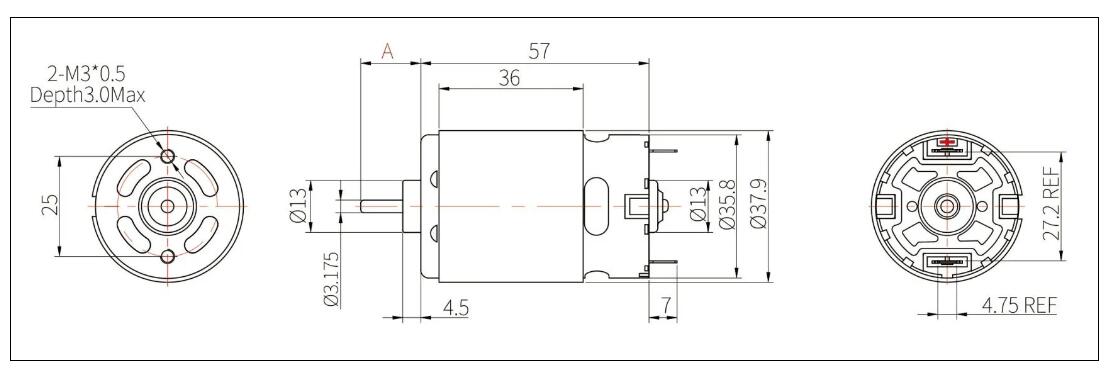

Dimensions:
Features:
This RF/RK-520TB micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.
Its reliable output and strong durability make the RF/RK-520TB an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.
Technical specifications:
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| RS-550PHF-6537GY | 12 | 0.9 | 15313 | 6.33 | 13406 | 452.06 | 62.28 | 44.50 | 3629.99 |
| RS-550PH-4559RD | 7.5 | 0.324 | 4911 | 1.83 | 4171 | 240.92 | 10.33 | 10.32 | 1598.89 |
| RS-555SH-22130RX | 24 | 0.08 | 4000 | 0.48 | 3430 | 229.30 | 8.08 | 2.89 | 1609.12 |
| RS-555SHJ2-3545L | 12 | 0.22 | 6500 | 1.66 | 5739 | 245.82 | 14.47 | 12.52 | 2099.65 |
Dimensions:
