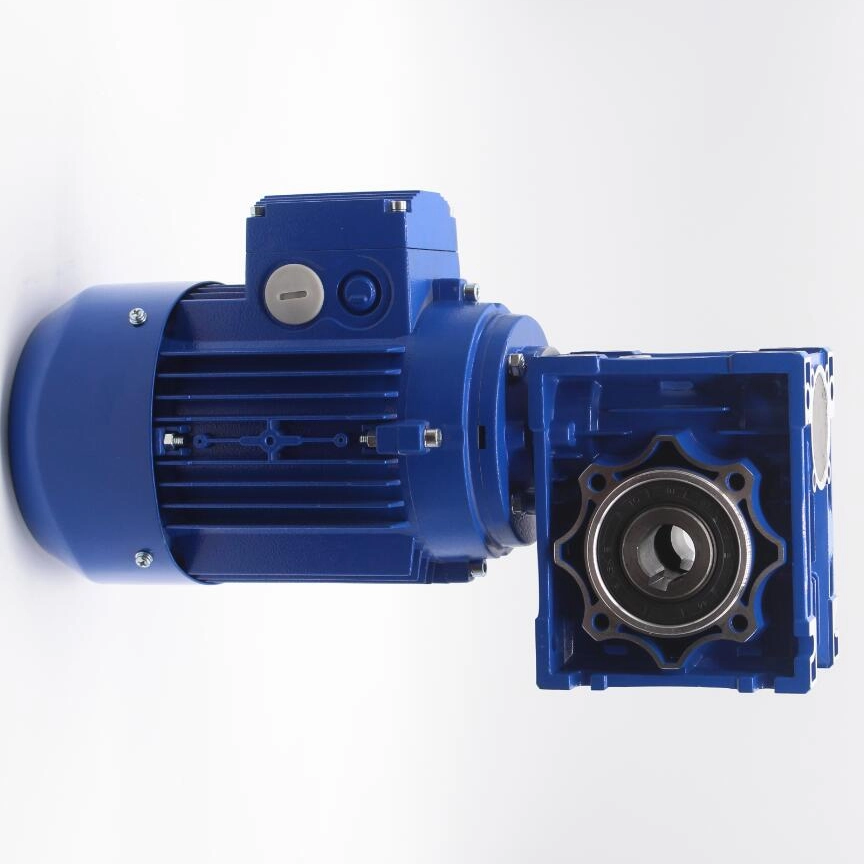

220V/380V/415V High torque with self lock Three phase AC worm gear motor for Industrial application

Voltage:3ph220V,3ph380V,3ph415V
Reduction Ratio:From 5/1 to 100/1
Output shaft:hollow shaft
Material of Gear:Worm gear,high torque with self lock function
Application:food conveyor,machinery
Contact:  david@derrymotor.com

  • DR149YS215-22014250-RV050-30K

  • Derry Motor

Availability:
Quantity:
Inquire Add to Basket

Structure features
1. Two types of housings: Aluminum alloy and cast iron;

Aluminium alloy models: RV025 030 040 050 063 075 090;

Cast iron models, RV 110 130 150.
2. Larger output torque.
3. Stable transmission with lower noise.
4. High heat-radiating efficiency.
5. Omnibearing installation available.
6. Reduction ratio:1:5---1:100 for single unit.


Technical specifications

Motor Model

DR149YS215-22014250

Gearbox Model

RV050-30K

Rated Voltage

3ph220V/380V 50HZ

 Speed at 50HZ 47rpm

Rated Power

250W

 Gear Ratio 30:1

Rated Current

1.42A



Rated Speed

1400rpm



Eff.

68.5%

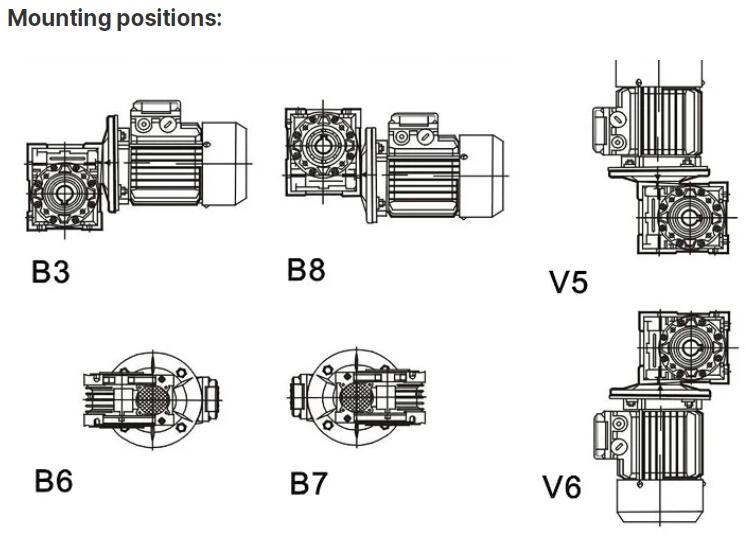

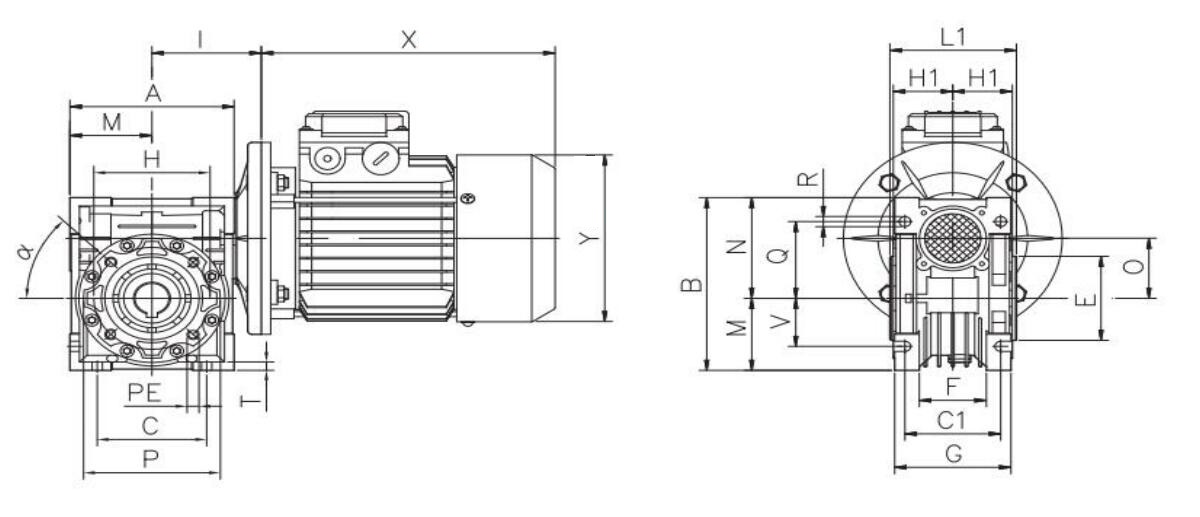

Drawing

QQ截图20240202112359QQ截图20240202112542
