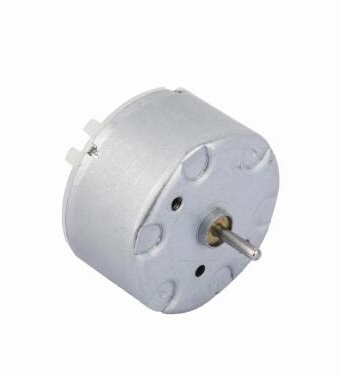

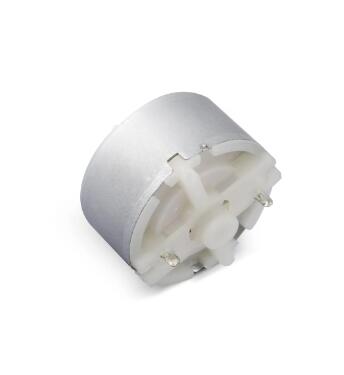

3V 6V RF/RK-500TB Micro DC Brushed Motor

Motor Type: Brushed DC Motor
Motor Diameter: 33 mm
Motor Length: 22.7 mm
Shaft Diameter: φ 2.0 mm
Rated Voltage: 6 V
Rated Speed: 9343 RPM
Output Power: 2.9 W
Output Torque: 30.24 g·cm

Model:
RF/RK-500TB
Brand:
Derry Motor
Code:
RF/RK-500TB

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

This RF/RK-500TB micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.

Its reliable output and strong durability make the RF/RK-520TB an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.

Technical specifications:

Model	Voltage	No Load		At Maximum Efficiency				Stall
	Voltage	Current	Speed	Current	Speed	Torque	Output	Current	Torque
	V	A	RPM	A	RPM	g·cm	W	A	g·cm
RF-500TB-19250	3	0.031	3100	0.17	2617	12.55	0.34	0.92	80.52
RF-500TB-18280	6	0.033	5640	0.22	4917	14.75	0.74	1.49	115.06
RF-500TB-20215	3	0.04	3550	0.2	2965	12.46	0.38	1.01	75.61

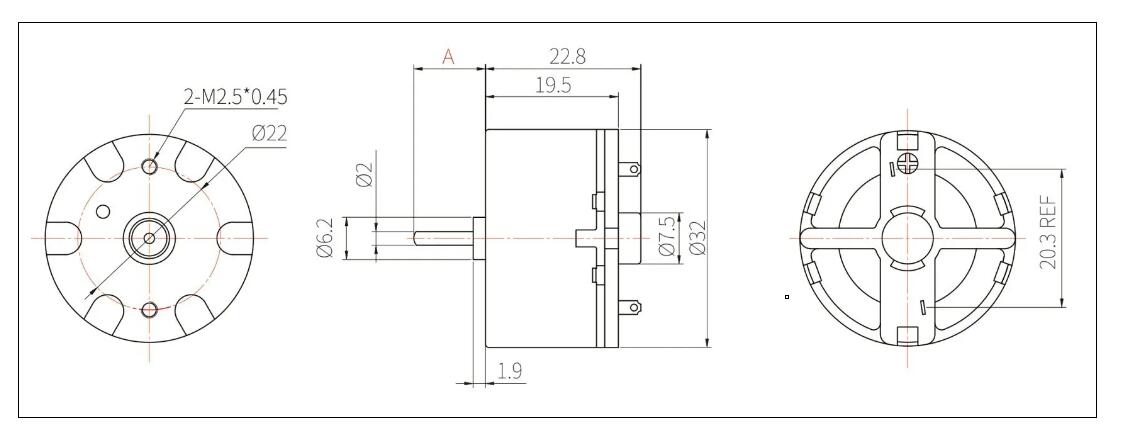

Dimensions:

RF500 DRAWING

3V 6V RF/RK-500TB Micro DC Brushed Motor RF/RK-500TB Micro DC Brushed Motor Micro dc brushed motor dc brushed motor
