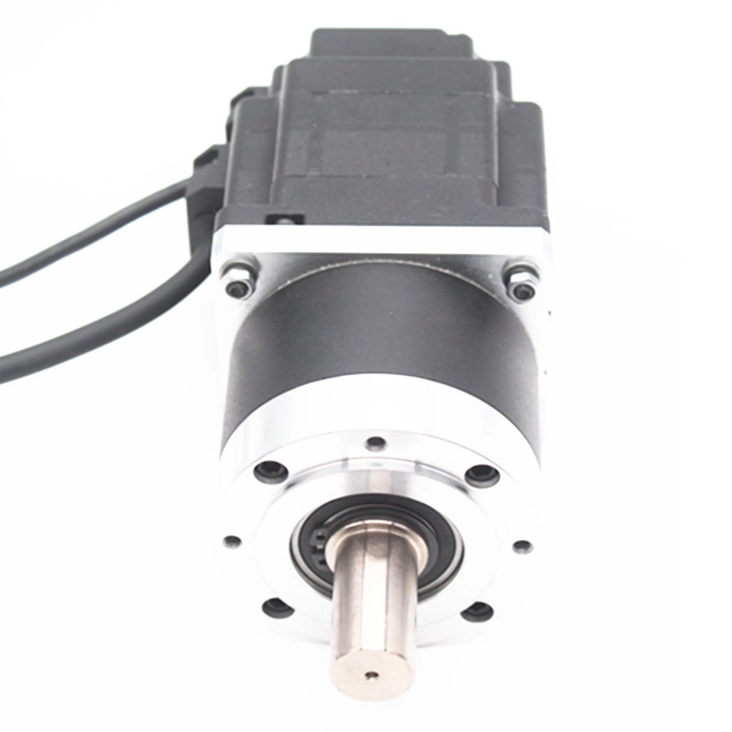

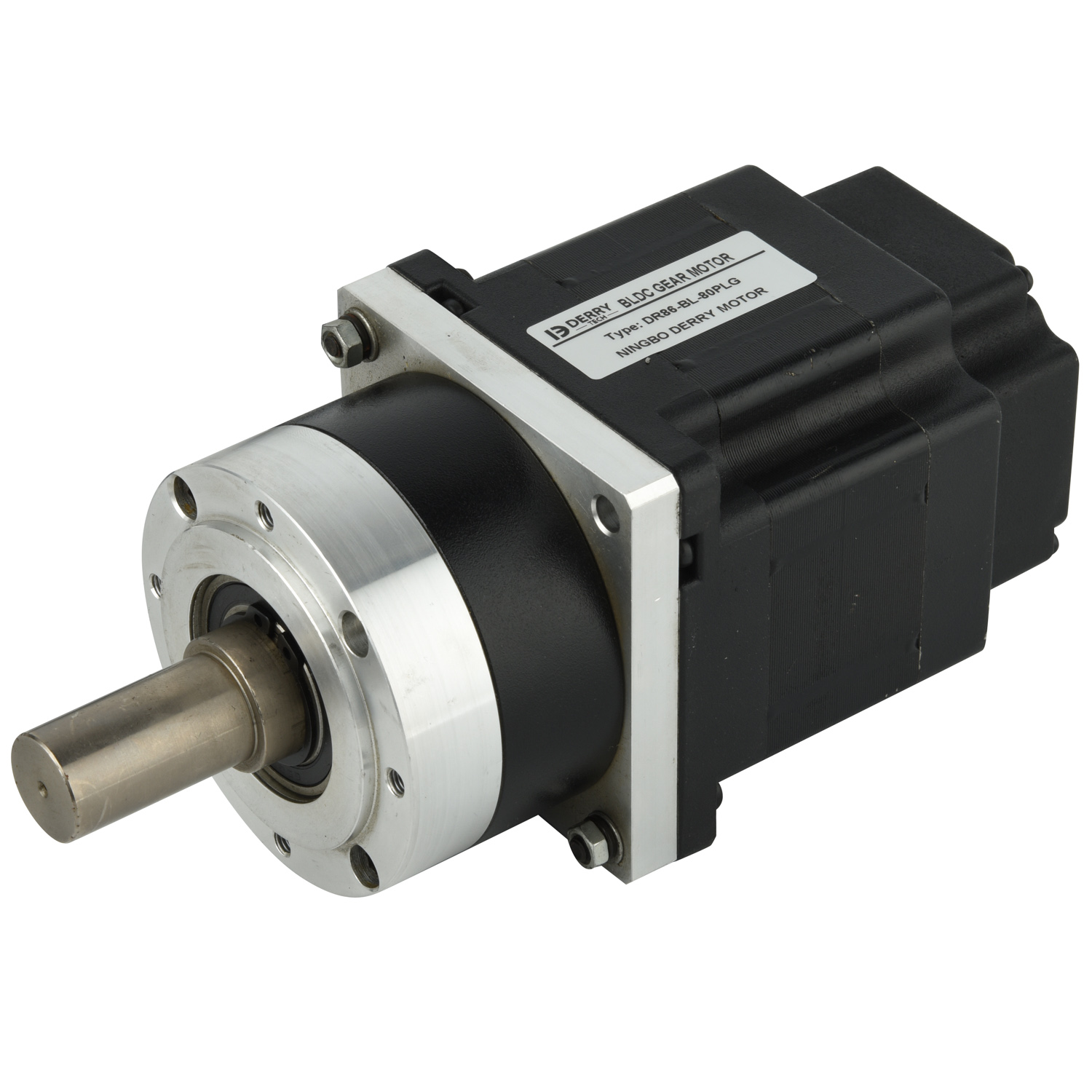

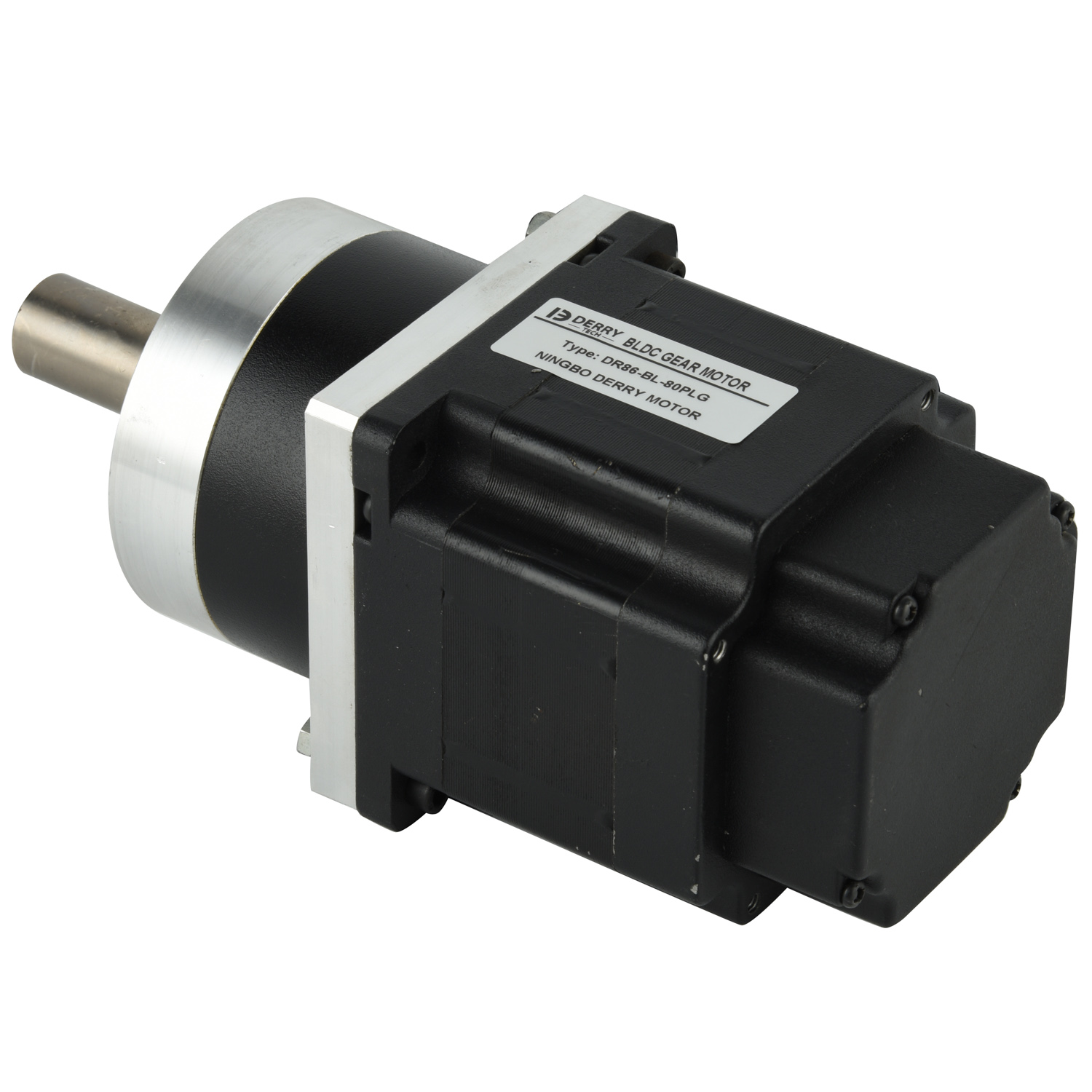

48v 200w 3000rpm DC brushless motor with planetary gear For Automatic Machine Industry Engines

Voltage:12V.24V,48V,DC
Power:100W,120W,150W,220W
Reduction Ratio:1:25,1:50,1:80,1:100
Material of Gear:Metal
Connector:optional
Application: Automatic Machine Industry Engines
contact：lisa@derrymotor.com

  • DR86BL164-4830220-80PLG-25K

  • Derry Motor

Availability:
Quantity:
Inquire Add to Basket

48v 200w 3000rpm DC brushless motor with planetary gear For Automatic Machine Industry Engines


Technical specifications

Motor Model

DR86BL164-4830220-80PLG-25K

Gearbox Model

Planetary

Voltage

48VDC

Gear Ratio

1:25

Rated Power

220W

Rated Torque

14N.m

Rated Current

5.8A



Rated Speed

3000rpm

Rated Torque

0.7N.m

Number of Poles

8

Weight

1.9KG

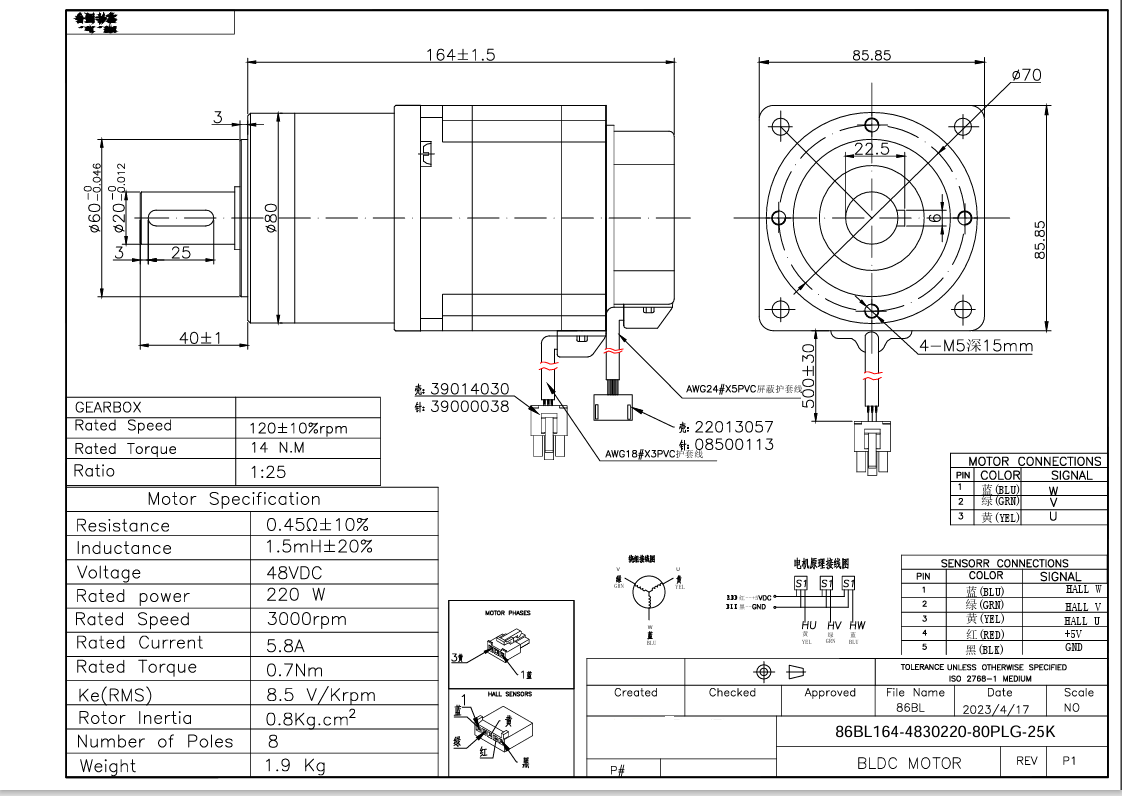

Drawing

GN%3_I_MBG0}SRGET)[68JK
