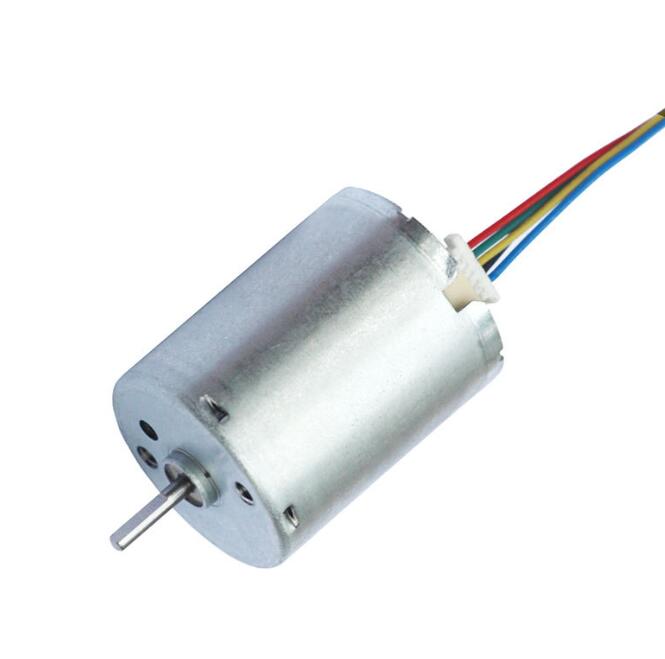

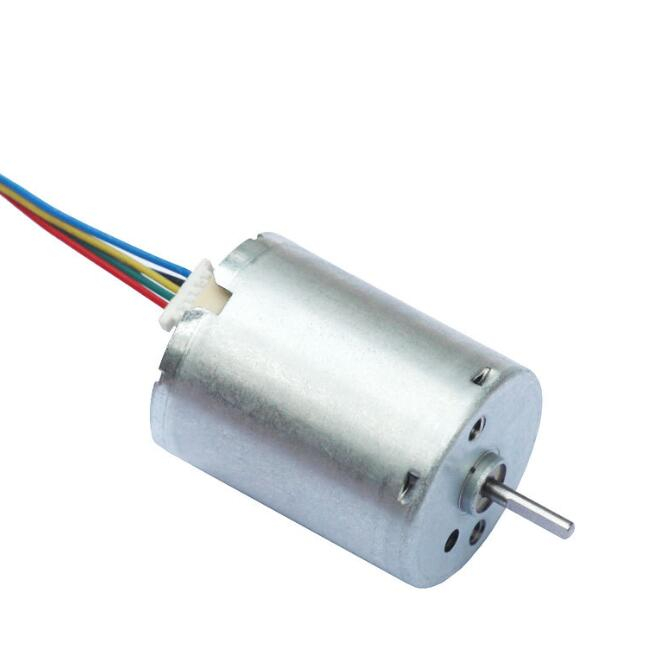

BL2430 BLDC MOTOR
Derry Motor
BL2430 BLDC MOTOR
| Quantity: | |
|---|---|
Features:
This BL2430 micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.
Its reliable output and strong durability make it an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.
Technical specifications:
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| BL2431-001A-04 | 12 | 0.1 | 7803 | 0.52 | 6549 | 71.82 | 4.83 | 2.71 | 446.90 |
| BL2431H-06A-04 | 5 | 0.178 | 5490 | 0.78 | 4469 | 48.72 | 2.24 | 3.42 | 261.97 |

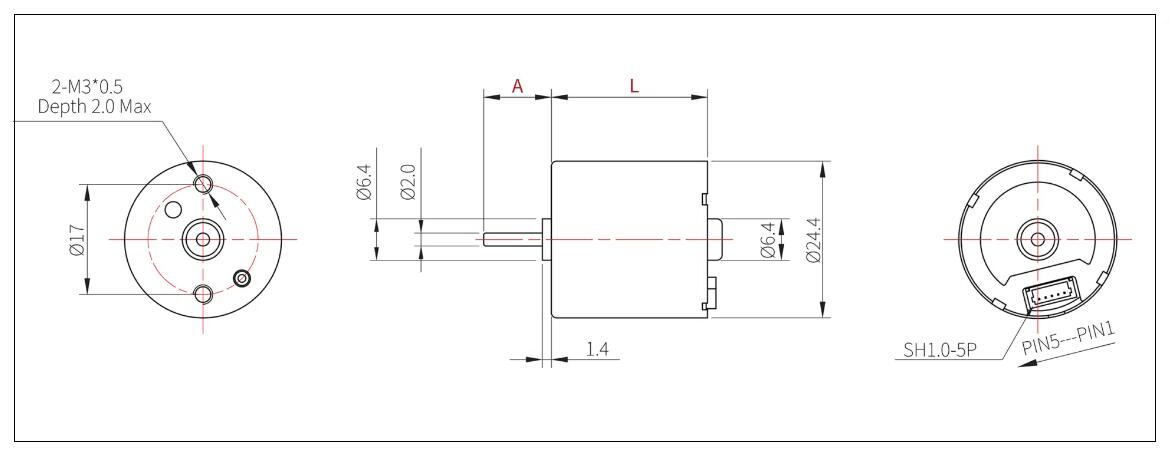

Dimensions:
Features:
This BL2430 micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.
Its reliable output and strong durability make it an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.
Technical specifications:
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| BL2431-001A-04 | 12 | 0.1 | 7803 | 0.52 | 6549 | 71.82 | 4.83 | 2.71 | 446.90 |
| BL2431H-06A-04 | 5 | 0.178 | 5490 | 0.78 | 4469 | 48.72 | 2.24 | 3.42 | 261.97 |
Dimensions:
