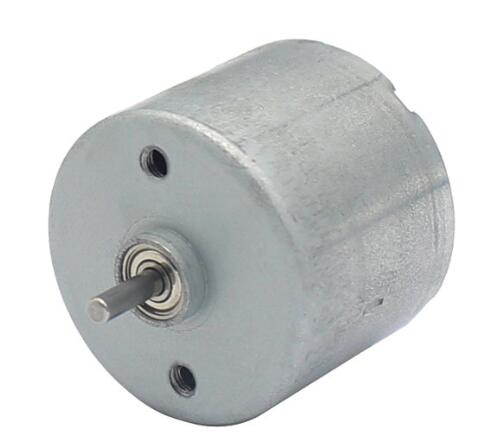

6V 12V 3PPR 6PPR BL2418 Micro DC Brushless Motor

Motor Type: BLDC Motor
Motor Diameter: 24.4 mm
Motor Length: 18 mm
Shaft Diameter: φ 2.0 mm
Rated Voltage: 3.7 V
Rated Speed: 12724 RPM
Output Power: 10.64 W
Output Torque: 81.39 g·cm

Model:
BL2418 BLDC MOTOR
Brand:
Derry Motor
Code:
BL2418 BLDC MOTOR

Availability:

Quantity:



Inquire Add to Basket

Product Description

Features:

This BL2418 micro DC motor features a compact and efficient design, delivering an output torque range of 5g·cm to 50g·cm. It covers a wide range of light to medium load conditions while offering high efficiency, excellent stability, and fast response. This makes it especially suitable for applications involving continuous start-stop and frequent movement.

Its reliable output and strong durability make it an ideal drive unit for automotive valve and switch control systems. Additionally, it finds wide use in actuators, commercial equipment, industrial tools, and power transmission elevators, meeting diverse performance requirements across various industries.

Technical specifications:

Model	Voltage	No Load		At Maximum Efficiency				Stall
	Voltage	Current	Speed	Current	Speed	Torque	Output	Current	Torque
	V	A	RPM	A	RPM	g·cm	W	A	g·cm
BL2418-002A-04	3.7	0.61	14742	3.85	12724	81.39	10.64	24.28	594.57
BL2418H-03A	6	0.196	11200	0.8	8993	33.58	3.10	3.26	170.41

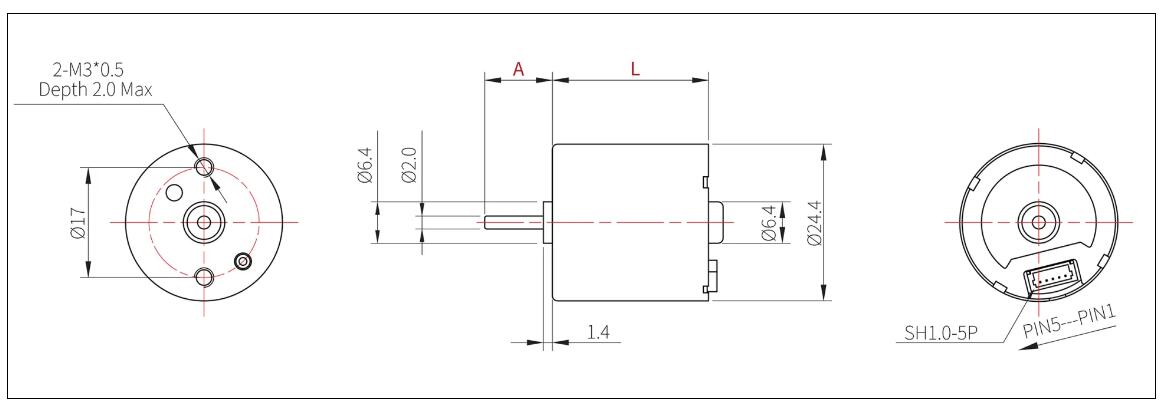

Dimensions:

drawing
