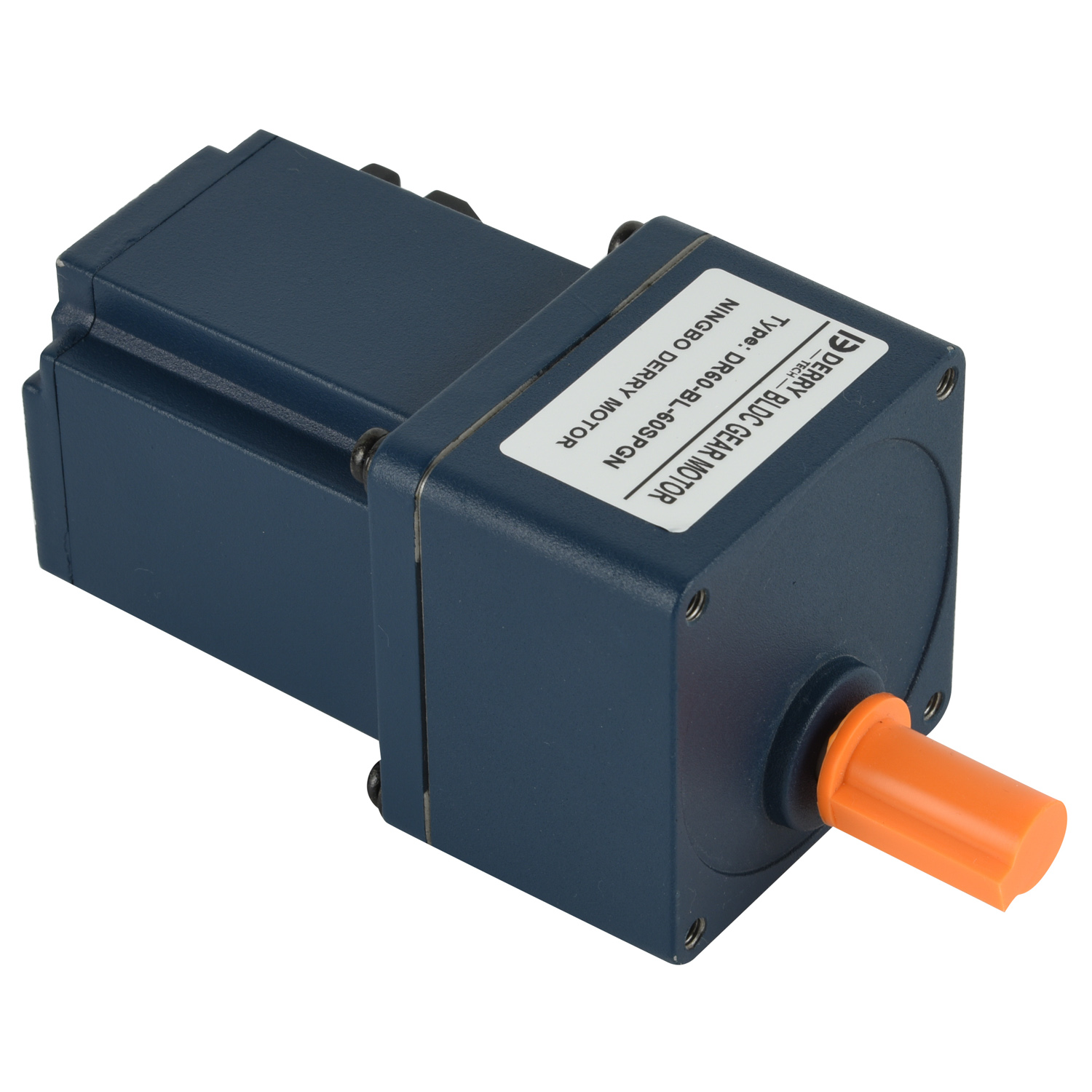

Brushless DC Gear Motor with solid output shaft

Voltage:24V,48VDC
Reduction Ratio:From 3/1 to 200/1
Output shaft:with keyway,D-cut,etc
Material of Gear:Metal
Connector:optional
Application:food industries,packing machine
  • DR80-BL-80SPGN

  • Derry Motor

Availability:
Quantity:

Universal DC gearmotors provide a balance of the features available on DC motors. They use an DC power source and are used to run appliances and tools such as vacuums, drills, and sanders. They are compact, lightweight, and provide higher starting speeds than other gearmotors. Though they provide the high starting torque of a DC motor, they have less precise speed control and have a lower rpm.


Technical specifications

Motor Model

DR80-BL

Gearbox Model

80SPGN

Voltage

24VDC

Gear Ratio

From 3/1 to 200/1

Rated Power

80W

Allowable Torque

From 0.92N.m to 8N.m

Rated Current

4.5A

Speed

From 10rpm to 667rpm

Rated Speed

2000rpm



Rated Torque

0.382N.m


No Load Current

0.8A


No Load Speed

2700rpm




Drawing

QQ截图20230323130629



Applications

Applications
