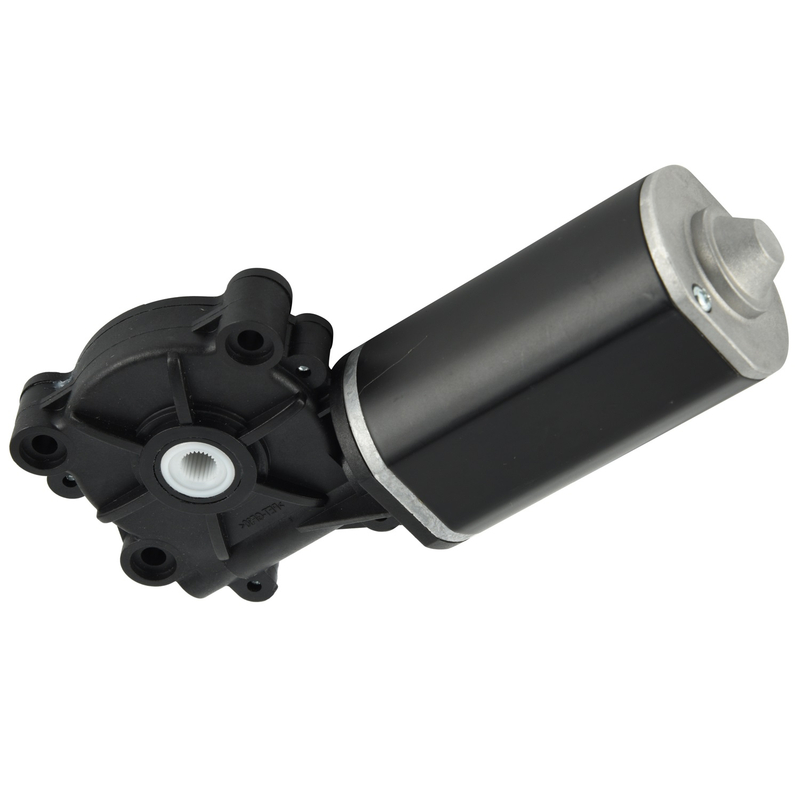

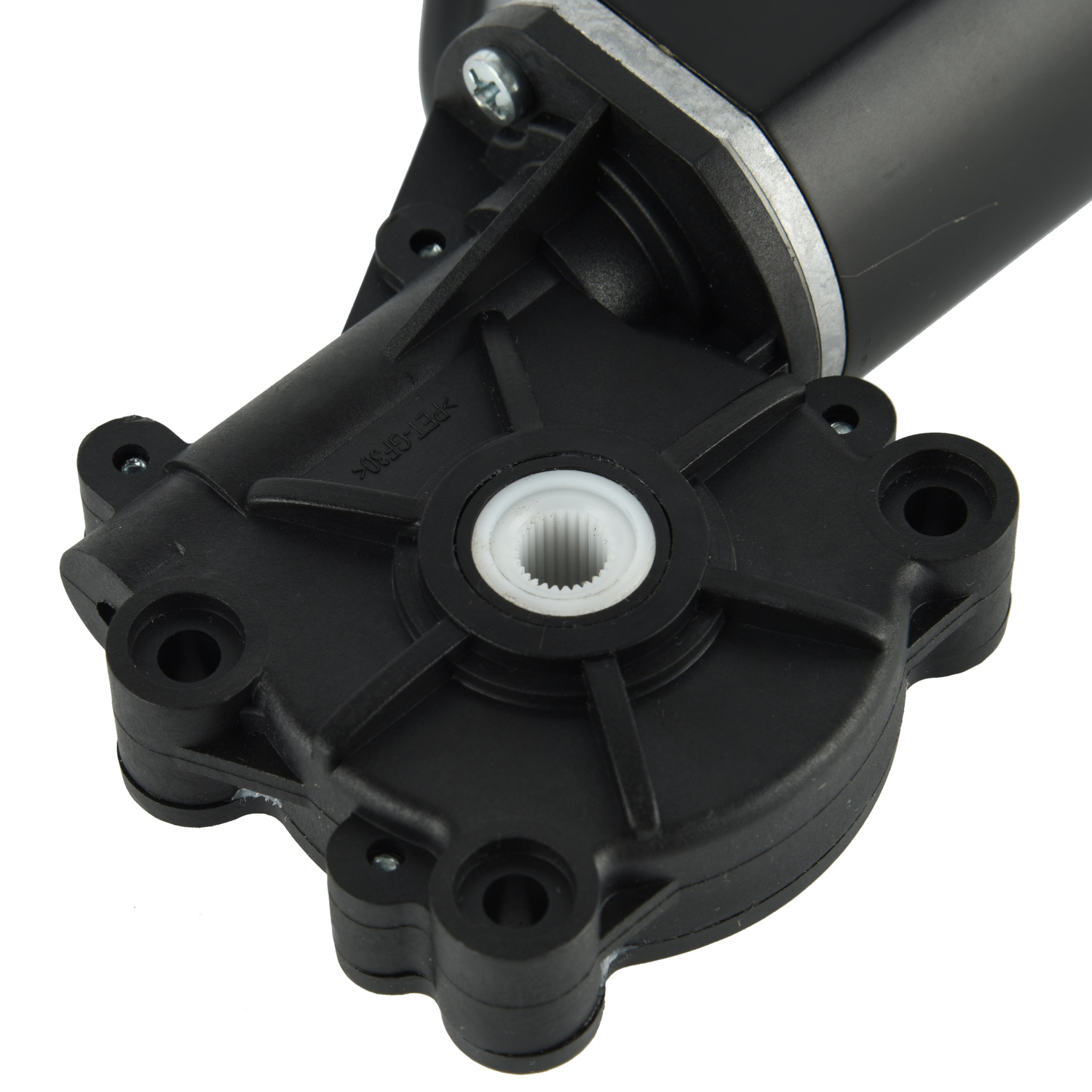

DR45ZYT 12V 24V High Performance Self Locking DC Worm Gear Motors with Hall Sensor for Height Adjustable Lifting OfficeTable

Voltage:12V,24V
Output shaft:Regular hexagon hollow shaft,Hollow spline shaft
Material of Gear:Plastic or Metal
Encoder or Hall:optional
Connector:optional

Controller available
Application:electric lift table

Model:
DR45-WWSC
Brand:
Derry Motor
Code:
DR45-WWSC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Typical Applications

Home automation machine motor,lift motor for bed,reclining massage chair motor, automatic dining table desk motor,gaming chair motor,bathroom vanities motor,tennis ball machine motor,dc motor for garbage disposal,sewing machine motor,food processing machinery motor, medical equipment motor, automatic door motor, welding equipment motor, golf cart dc motor, woodworking machinery, lifting device motor.

Technical specifications

Environmental Conditions	—20℃~50℃
Rotation Direction	CW/CCW
Noise	≤45dB
Work Condition	S1
Number of Phases	/
Insulation Class	F
Protection Class	IP20

Motor Technical Data						Gearbox Technical Data
Model	RATED	NO LOAD		INSULATION CLASS	PROTECTION CLASS	REDUCTION RATIO	NO LOAD
	Voltage	Speed	Current	/	/	(1: xx)	Speed	Current
	V	rpm	A	/	/	/	rpm	A
DR45-WWSC-24	24	6500	0.65	Class F	IP20	1:39	167	0.7
We can also customize products according to customer requirements.

Dimensions

Applications
