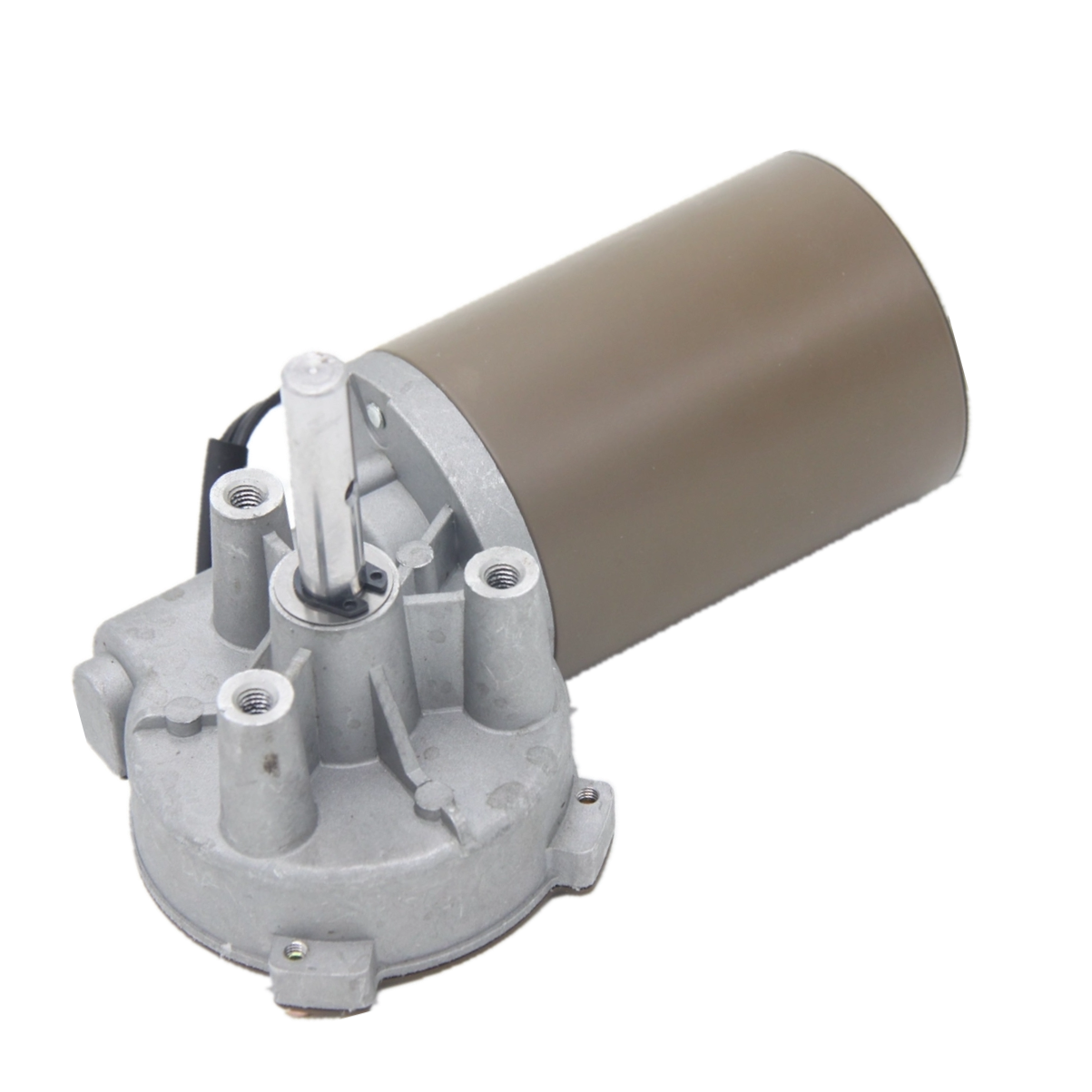

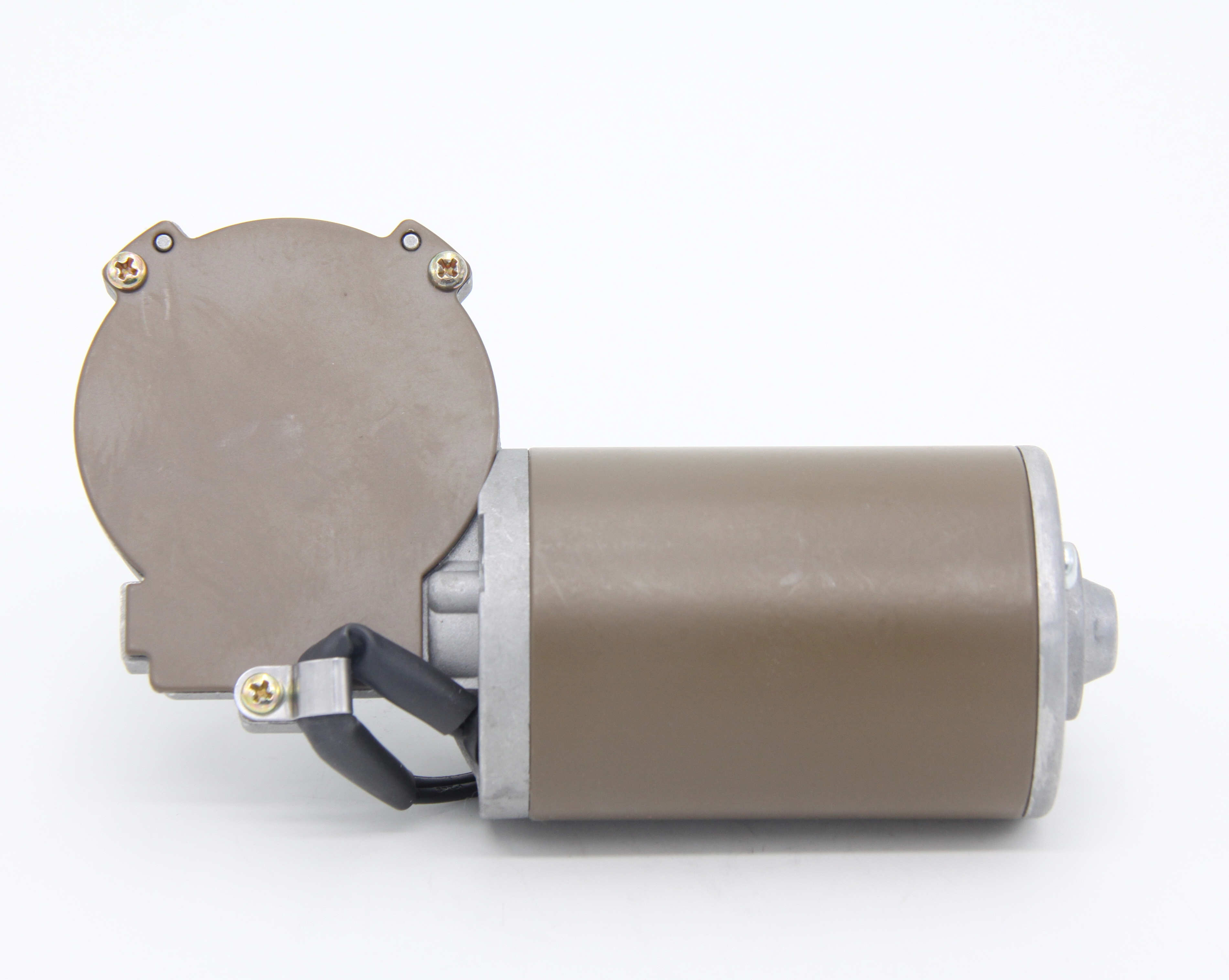

DR63-WWSG
Derry Motor
DR63-WWSG
| Quantity: | |
|---|---|
Typical Applications
Home automation machine motor,lift motor for bed,reclining massage chair motor, automatic dining table desk motor,gaming chair motor,bathroom vanities motor,tennis ball machine motor,dc motor for garbage disposal,sewing machine motor,food processing machinery motor, medical equipment motor, automatic door motor, welding equipment motor, golf cart dc motor, woodworking machinery, lifting device motor.
Technical specifications
Products Type | Voltage | Power | No Load | Load | Gear ratio | Noise | |||
Speed | Current | Speed | Current | Torque | |||||
V | W | RPM | A | RPM | A | N．M | dB | ||
DR63-24225 | 24 | 60 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥2.0 | 1:15 | ≤45 |
DR63-38300 | 38 | 100 | 300±5 | ≤0.8 | 280±5 | ≤60 | ≥3.0 | 1:10 | ≤45 |
DR63-36225 | 36 | 100 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥3.0 | 1:15 | ≤45 |
DR63-60335 | 60 | 100 | 335±5 | ≤0.8 | 300±5 | ≤60 | ≥3.0 | 1:10 | ≤45 |
DR63-24225 | 24 | 60 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥2.0 | 1:15 | ≤45 |
Remarks | Above are our model parameter for the motor for your reference, and we can desige and make following to your voltage, power, speed, torque, install dimension and shaft outspeed dimension etc. | ||||||||
Dimensions
Applications
Typical Applications
Home automation machine motor,lift motor for bed,reclining massage chair motor, automatic dining table desk motor,gaming chair motor,bathroom vanities motor,tennis ball machine motor,dc motor for garbage disposal,sewing machine motor,food processing machinery motor, medical equipment motor, automatic door motor, welding equipment motor, golf cart dc motor, woodworking machinery, lifting device motor.
Technical specifications
Products Type | Voltage | Power | No Load | Load | Gear ratio | Noise | |||
Speed | Current | Speed | Current | Torque | |||||
V | W | RPM | A | RPM | A | N．M | dB | ||
DR63-24225 | 24 | 60 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥2.0 | 1:15 | ≤45 |
DR63-38300 | 38 | 100 | 300±5 | ≤0.8 | 280±5 | ≤60 | ≥3.0 | 1:10 | ≤45 |
DR63-36225 | 36 | 100 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥3.0 | 1:15 | ≤45 |
DR63-60335 | 60 | 100 | 335±5 | ≤0.8 | 300±5 | ≤60 | ≥3.0 | 1:10 | ≤45 |
DR63-24225 | 24 | 60 | 225±5 | ≤0.8 | 200±5 | ≤60 | ≥2.0 | 1:15 | ≤45 |
Remarks | Above are our model parameter for the motor for your reference, and we can desige and make following to your voltage, power, speed, torque, install dimension and shaft outspeed dimension etc. | ||||||||
Dimensions
Applications
