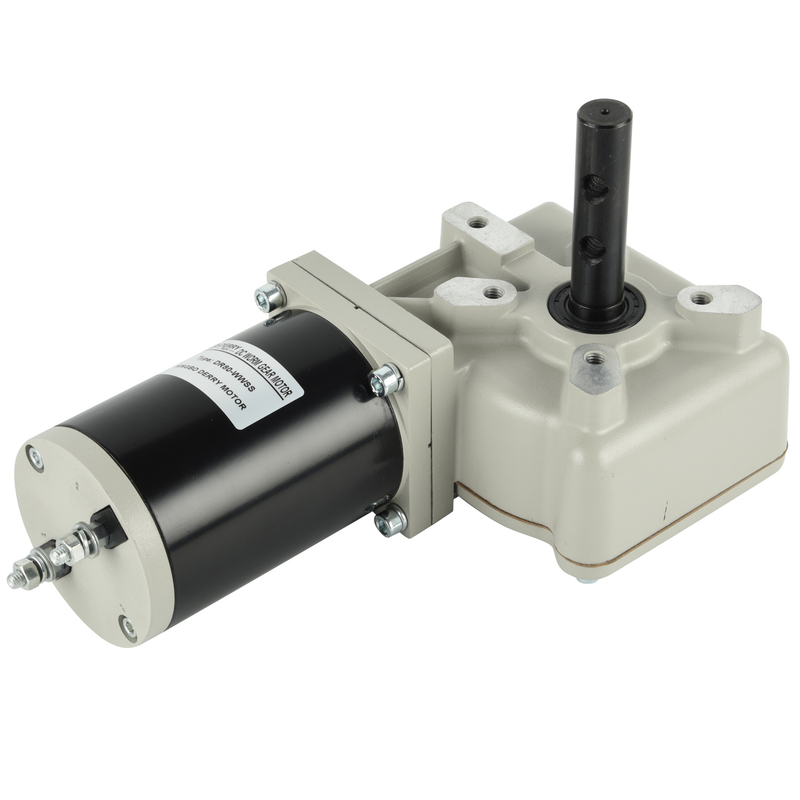

DR80-WWSC
Derry Motor
DR80-WWSC
| Quantity: | |
|---|---|
Features of Derry' DC Worm Gear Motors
1. Compact structure & small size: Integrates DC motor, turbine worm reducer, and output shaft, saving installation space.
2. Large torque & low speed: The turbine worm mechanism provides strong torque output at low rotational speed, with stable operation.
3. Self-locking function: Worm gear structure has good self-locking performance, preventing reverse rotation under load.
4. Smooth running & low noise: Stable meshing of gears reduces vibration and noise during operation.
5. High efficiency & energy saving: Optimized transmission structure improves energy efficiency compared with ordinary reduction motors.
6. Wide speed regulation range: Adjustable speed via DC voltage or PWM control, with good controllability.
7. Long service life: Adopts wear-resistant materials and lubrication design, suitable for long-term continuous operation.
General Specifications
| Environmental Conditons | —20℃~50℃ | Number of Phases | / |
| Rotation Direction | CW/CCW | Insulation Class | B-H |
| Noise | ≤65dB | Protection Class | IP40 |
| Work Condition | S1.S2.S3 |
Technical specifications of DC worm gear motor
Model | Voltage | Torque | Current | Speed | Ratio | Power |
V | N.m | A | rpm | W | ||
DR80-WWSC | 12 | 13 | 30 | 76±10% | 59:1 | 240 |
The specifications can be designed according to the customer’s requirement! | ||||||

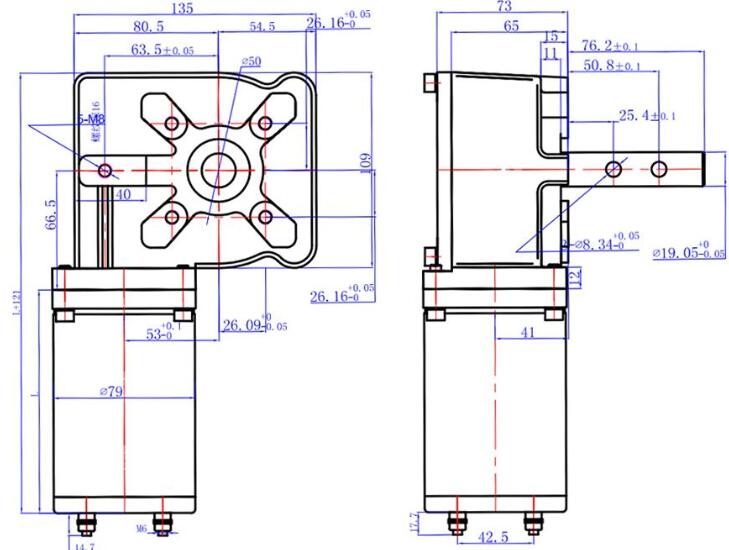

Dimensions
