DR55ZYT-PX,70ZYT-PX
Derry Motor
Availability: | |
---|---|
Quantity: | |
Universal DC gearmotors provide a balance of the features available on DC motors. They use an DC power source and are used to run appliances and tools such as vacuums, drills, and sanders. They are compact, lightweight, and provide higher starting speeds than other gearmotors. Though they provide the high starting torque of a DC motor, they have less precise speed control and have a lower rpm.
Technical specifications
Motor Model | 55ZYT,70ZYT | Planetary gearbox | 50PX,70PX |
Voltage | 24-110VDC | reduction ratio | 4.16.64.256 |
Rated Power | 20-150W | Rated Torque | 260-21200mN.m |
Rated Speed | 3000rpm |

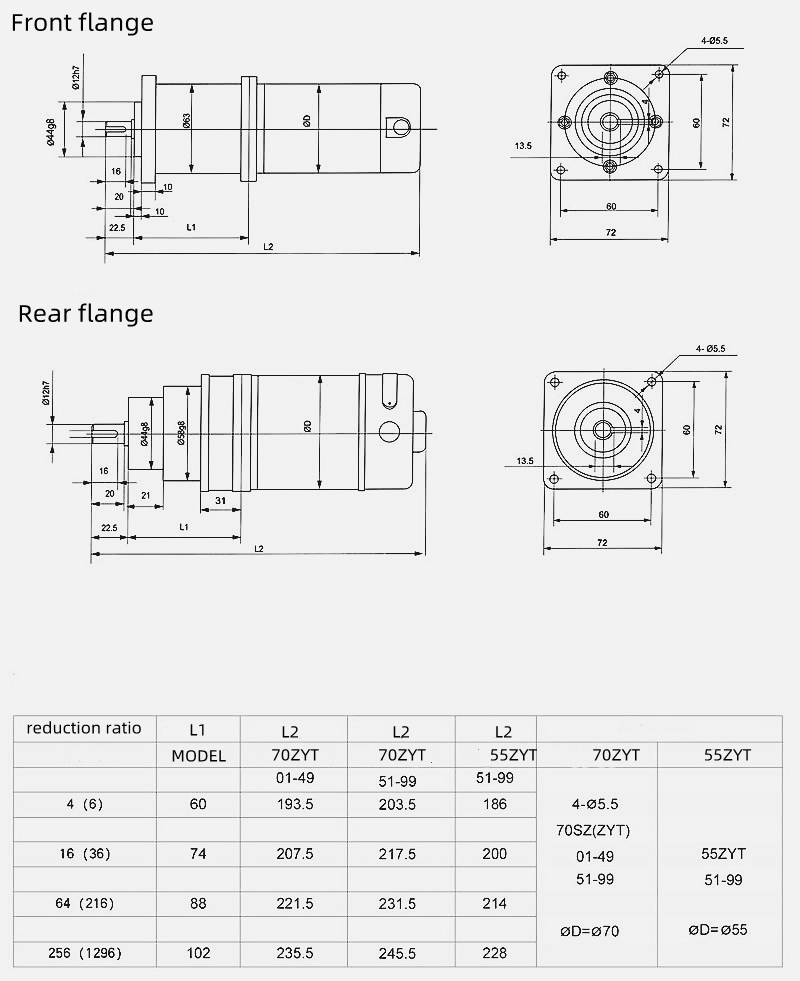

Drawing
Applications
