DR38-BL
Derry Motor
DR38-BL
| Quantity: | |
|---|---|
Brushless DC Outrotor Motors
In out rotor BLDC motors, This motor is a built-in driver, which has the advantage of high precision and small size, allowing for better device driving.
Advantages
1.Higher efficiency and power density than induction motors (approx. 35% volume and weight reduction with the same output)
2.Long service life and quiet running thanks to precision ball bearings
3.Wide speed range with full motor output due to linear torque curve Reduced electrical interference emission
4.Mechanically exchangeable with stepper motors, hence less construction expense and greater parts variety
Technical specifications
Motor Model | DR38-BL |
Voltage | 12VDC |
Rated Power | 10W |
Rated Speed | 2600rpm |
Rated Current | 1.0A |
Rated Torque | 275g.cm |
Peak Current | 5.0A |
Peak Torque | 1700g.cm |

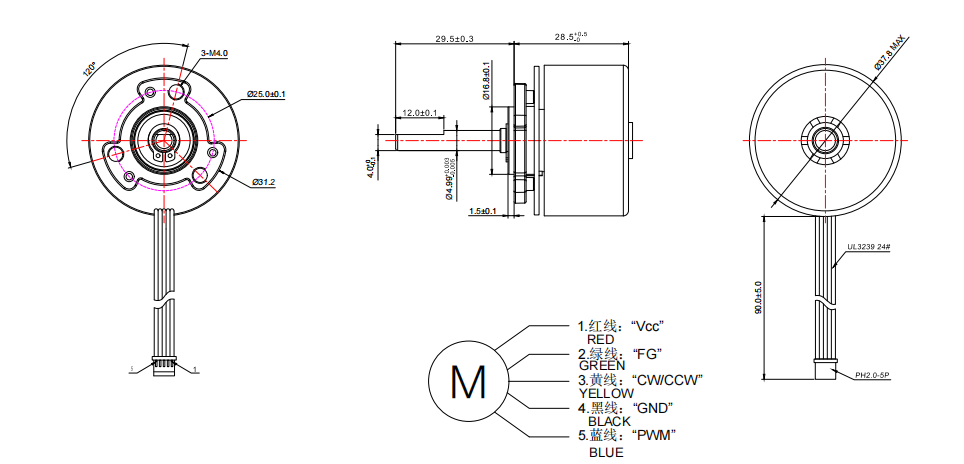

Drawing
Brushless DC Outrotor Motors
In out rotor BLDC motors, This motor is a built-in driver, which has the advantage of high precision and small size, allowing for better device driving.
Advantages
1.Higher efficiency and power density than induction motors (approx. 35% volume and weight reduction with the same output)
2.Long service life and quiet running thanks to precision ball bearings
3.Wide speed range with full motor output due to linear torque curve Reduced electrical interference emission
4.Mechanically exchangeable with stepper motors, hence less construction expense and greater parts variety
Technical specifications
Motor Model | DR38-BL |
Voltage | 12VDC |
Rated Power | 10W |
Rated Speed | 2600rpm |
Rated Current | 1.0A |
Rated Torque | 275g.cm |
Peak Current | 5.0A |
Peak Torque | 1700g.cm |
Drawing
