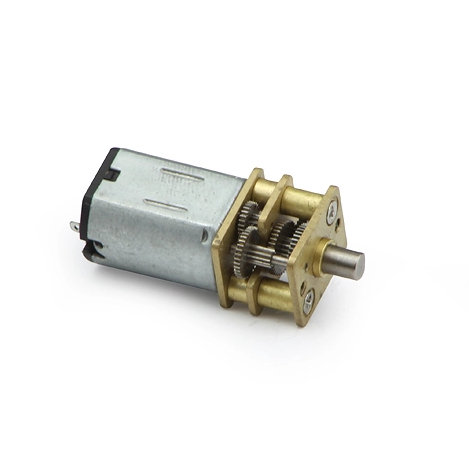

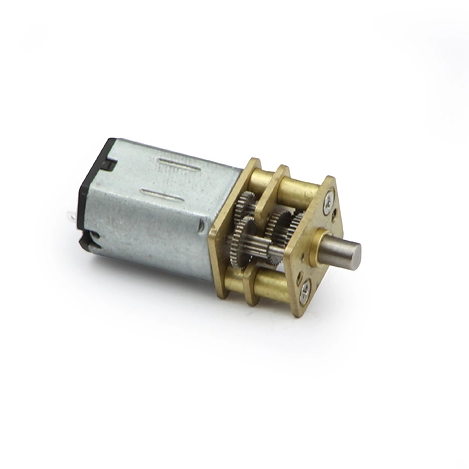

N30 Geared motor
Derry Motor
N30 Geared motor
| Quantity: | |
|---|---|
Features:
The N30 micro DC gear motor uses high-performance NdFeB permanent magnets and F-class heat-resistant enameled wire, which improves output efficiency while having good heat resistance. The motor has a built-in varistor, which can effectively absorb voltage spikes in the PWM control system, reduce the risk of circuit interference, and improve the operating stability and safety of the whole machine.
With stable performance and compact structural design, this motor is suitable for small drive devices such as smart door locks, coffee machines, beauty instruments, electric screwdrivers, etc. that have high requirements for response speed and control accuracy.
Technical specifications:
| Reduction Ratios | 9.9 | 29.9 | 66.8 | 99 | 150 | 210 | 298 | 380 | 627 | |
| Gearbox Length | mm | 6.8 | 6.8 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 9.1 | 12.1 | |
| Rated Torque | kg·cm | 0.02 | 0.05 | 0.15 | 0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | |
| Rated Speed | RPM | 1100 | 372 | 170 | 105 | 69.3 | 48.7 | 35.5 | 28.3 | 16.7 | |
| Stall Torque | kg·cm | 0.11 | 0.31 | 0.6 | 0.9 | 1.4 | 1.7 | 2.5 | 3.1 | 4.7 | |
| Max Instantaneous Torque | kg·cm | 0.1 | 0.3 | 0.5 | 0.8 | 1.0 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Model | Voltage | No Load | At Maximum Efficiency | Stall | |||||
| Current | Speed | Current | Speed | Torque | Output | Current | Torque | ||
| V | A | RPM | A | RPM | g·cm | W | A | g·cm | |
| FK-N30-2236 | 3.7 | 0.29 | 37282 | 1.46 | 31623 | 10.1 | 3.28 | 8.00 | 66.54 |

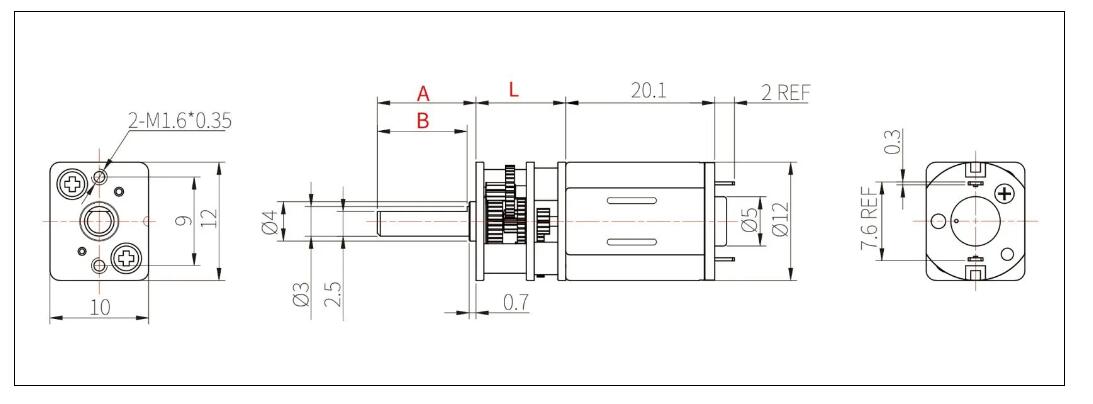

Dimensions:
